Annie and I are in the middle stages of our coaster bus conversion. We decided to use the CMS electrical system and as such have got the 15Amp inlet with RCD.
when it comes to cutting the hole in the bus to fit this unit the shape is complex and I cant think of an easy way to make a hole template for it. My mate Google has let me down too.
does anyone out there have a hole template for it?
kind regards. Grant
Mike Harding said
07:40 AM Aug 6, 2022
How about:
Photograph it
Import the photo into Photoshop (or similar)
Manipulate it to 1:1 scale
Use the drawing tools to draw an outline
Print it
Test on a piece of cardboard first
Whenarewethere said
08:07 AM Aug 6, 2022
Cut a hole a bit larger in a sheet of paper. Patch up hole to match perimeter of object with sticky tape, with or without patches of paper. If you end up with layers of paper, cardboard & tape it doesn't matter. Doesn't need to look pretty. It will actually make it more solid.
-- Edited by Whenarewethere on Saturday 6th of August 2022 08:12:14 AM
Hi folks
Annie and I are in the middle stages of our coaster bus conversion. We decided to use the CMS electrical system and as such have got the 15Amp inlet with RCD.
when it comes to cutting the hole in the bus to fit this unit the shape is complex and I cant think of an easy way to make a hole template for it. My mate Google has let me down too.
does anyone out there have a hole template for it?
kind regards.
Grant
How about:
Photograph it
Import the photo into Photoshop (or similar)
Manipulate it to 1:1 scale
Use the drawing tools to draw an outline
Print it
Test on a piece of cardboard first
Cut a hole a bit larger in a sheet of paper. Patch up hole to match perimeter of object with sticky tape, with or without patches of paper. If you end up with layers of paper, cardboard & tape it doesn't matter. Doesn't need to look pretty. It will actually make it more solid.
-- Edited by Whenarewethere on Saturday 6th of August 2022 08:12:14 AM

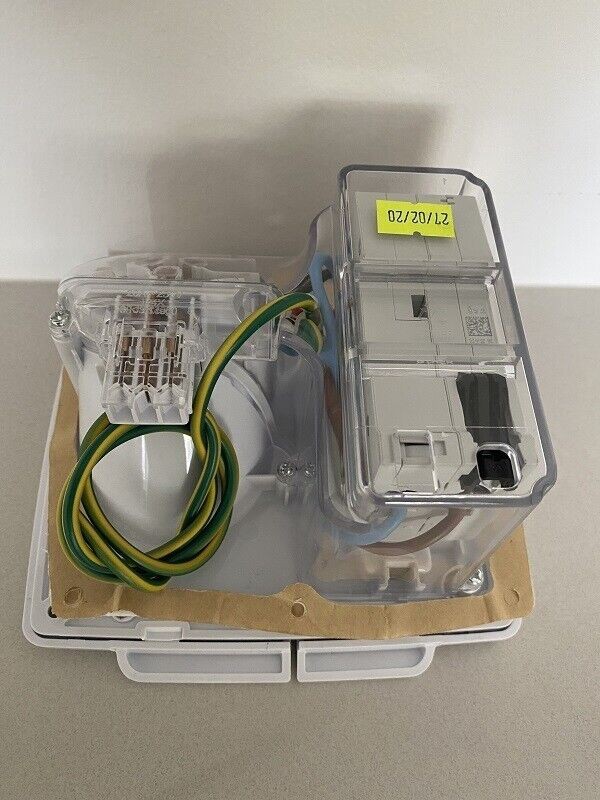

Is this the one
Yes indeedy gundog thats the one
-- Edited by gmax on Sunday 7th of August 2022 09:04:01 AM
-- Edited by gmax on Sunday 7th of August 2022 06:35:14 PM
How did u do it gundog?
I just got the picture from CMS web pages, it appears it is supplied with an adheasive foam gasket, which would be easy to trace and make a template.
I have scaled things on the computer screen & traced.
