We are in Sandstone WA.Our water pump switch on our Drifter house Monitor is Stuffed on our maiden trip.
The pump will work only if I hold the hardest plugs X 2 at the rear in the cuboard in our Jayco Journey Outback.
I need to remove the unit total to try and fix the 2 clip in plugs behind.
I cannot see any screws holding it in from the rear. Can anyone tell me if the face clips off, or can the unit pull straight out from the front as it too is loose to the veneer timber surface.
Jim & Lambie
iana said
11:32 PM Sep 4, 2016

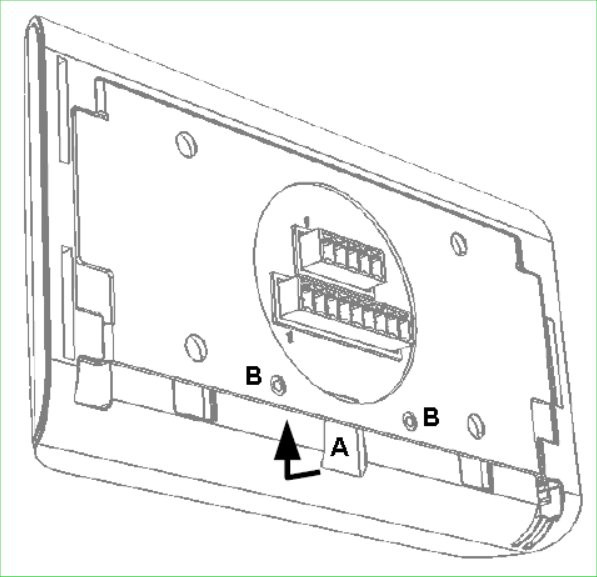

Insert flat-blade screwdriver into slot 'A'. Gently lever case away from bracket enough for dimples 'B' to clear locating holes Then slide Drifter upwards. Note: Some force may be needed to slide the Drifter upwards because it usually binds tightly on the four locating tangs
-- Edited by iana on Sunday 4th of September 2016 11:38:12 PM
Yes I found the book in my nightmere of booklets. I didn't need a screw driver, it slid up without the need of one.
I have put sum Blue tack in and around to try hold it in place.
We have had doors come off, 240 volt issues with poor politely. Not happy.
thanks again. Jim
iana said
06:43 AM Sep 5, 2016
I wouldn't go plastering blue tack back there, what is actually wrong. The switch on my unit also went u/s, but the switch itself wouldn't operate, and was permanently on.
Those plugs going into the rear of the unit fit pretty well, maybe the loom is putting weight on it, the loom may need supporting.
Colin Penrose said
10:29 AM Sep 5, 2016
Jayco !!!!!!!!!! Wouldn't have one given after all the faults posted.
TheHeaths said
01:59 PM Sep 5, 2016
Unfortunately Colin, the Drifter unit can be found in all sorts of vans. Jayco don't make it!
kiwijims said
10:57 AM Sep 6, 2016
Hey Jim, the last I heard, You were heading for Geraldton, Now you say you are in Sandstone !!!
What happened ??? take a wrong turn or something ???
Hi All,
We are in Sandstone WA.Our water pump switch on our Drifter house Monitor is Stuffed on our maiden trip.
The pump will work only if I hold the hardest plugs X 2 at the rear in the cuboard in our Jayco Journey Outback.
I need to remove the unit total to try and fix the 2 clip in plugs behind.
I cannot see any screws holding it in from the rear. Can anyone tell me if the face clips off, or can the unit pull straight out from the front as it too is loose to the veneer timber surface.
Jim & Lambie
Insert flat-blade screwdriver into slot 'A'.
Gently lever case away from bracket
enough for dimples 'B' to clear locating
holes Then slide Drifter upwards.
Note: Some force may be needed to slide
the Drifter upwards because it usually
binds tightly on the four locating tangs
-- Edited by iana on Sunday 4th of September 2016 11:38:12 PM
Hi Iana,
Thanks for your quick reply.
Yes I found the book in my nightmere of booklets. I didn't need a screw driver, it slid up without the need of one.
I have put sum Blue tack in and around to try hold it in place.
We have had doors come off, 240 volt issues with poor politely. Not happy.
thanks again. Jim
Those plugs going into the rear of the unit fit pretty well, maybe the loom is putting weight on it, the loom may need supporting.
Jayco !!!!!!!!!! Wouldn't have one given after all the faults posted.
Hey Jim, the last I heard, You were heading for Geraldton, Now you say you are in Sandstone !!!
What happened ??? take a wrong turn or something ???
K.J.
