When you set up duel batteries in the tow vehicle through the Redarc isolation switch ,do you run your wires for the fridge freezer in the back ,off the crank battery or the auxiliary battery or doesn't it matter,and also do you need to put a fuse or circuit breaker on each pos battery lead to the isolation switch, many thanks.ps if I need circuit breakers what AMP and what AMP fuse if needed.
Lance C
-- Edited by Olley46 on Monday 6th of April 2015 08:11:24 PM
Baz421 said
08:14 PM Apr 6, 2015
Aux battery for accessories.
Circuit breakers - NO for staring battery,,, yes for aux battery.
Olley46 said
09:25 AM Apr 8, 2015
Baz421 wrote:
Aux battery for accessories.
Circuit breakers - NO for staring battery,,, yes for aux battery.
Hi Baz421
I am using the isolator switch as a start assist as well the book with the switch recommends 100AMP circit breaker would it need to be that big,thanks in advance.
Lance C
-- Edited by Olley46 on Wednesday 8th of April 2015 09:27:39 AM
Brenda and Alan said
11:05 AM Apr 8, 2015
You need a fuse at BOTH batteries as any short to earth in the connecting cable can draw from both. We use 100 Amp fuses as the same cable also runs the van fridge (3 way ) and a DC_DC charger for van battery when required. Total current can be very high on occasions.
I also assume the reason for the auxiliary battery is to run the fridge in the tug so wire it only to the auxilary.
Alan
-- Edited by Brenda and Alan on Wednesday 8th of April 2015 11:08:02 AM
Olley46 said
04:48 PM Apr 8, 2015
Brenda and Alan wrote:
You need a fuse at BOTH batteries as any short to earth in the connecting cable can draw from both. We use 100 Amp fuses as the same cable also runs the van fridge (3 way ) and a DC_DC charger for van battery when required. Total current can be very high on occasions.
I also assume the reason for the auxiliary battery is to run the fridge in the tug so wire it only to the auxilary.
Alan
-- Edited by Brenda and Alan on Wednesday 8th of April 2015 11:08:02 AM
Thanks Alan for your advice, have just ordered 2- 100 AMP circuit breakers , when fitted should be honky dory cheers.
Lance C
Brenda and Alan said
05:55 PM Apr 8, 2015
Ollet46 aren't 100 Amp circuit breakers very expensive compared to ANL fuses.
Alan
Olley46 said
06:58 PM Apr 8, 2015
Brenda and Alan wrote:
Ollet46 aren't 100 Amp circuit breakers very expensive compared to ANL fuses.
Alan
I got 2 for $52.90 of the Internet ,I thought that was a reasonable price, may be I am wrong.
Lance C
Brenda and Alan said
08:19 PM Apr 8, 2015
Olley46 are they rated to operate with DC current.
Alan
Olley46 said
09:16 PM Apr 8, 2015
Brenda and Alan wrote:
Olley46 are they rated to operate with DC current.
Alan
They are for a duel battery setup,they are manual reset and water proof.
Lance C
03_Troopy said
02:31 PM Apr 9, 2015

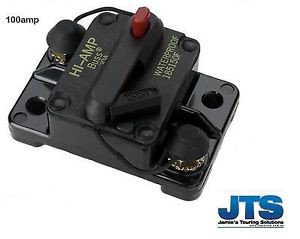

I fitted a couple of these to mine.
This mob have them for $34.00 free postage. I didn't get mine from here though, got them through work at the time.
