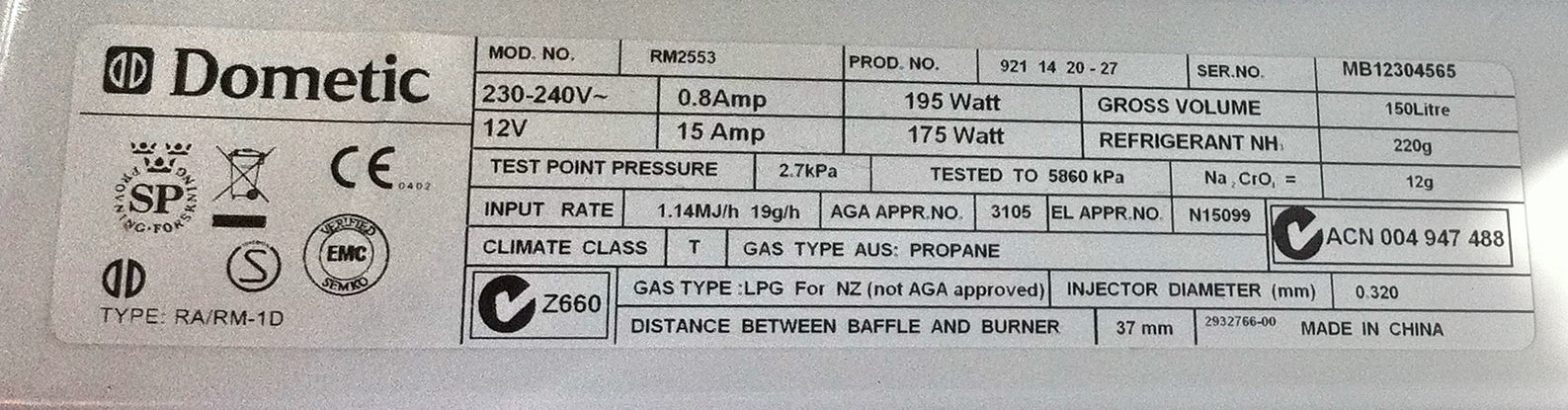

When turning fridge on gas the tiny red needle does not move more than 2mm from the left to right, towards the green, to let me know it is working. It does not reach into the green area. What have others found?
Hi Paul,
I am not certain of this but I would think that the thermocouple may have been dislodged and is not completely in the flame. The low reading could mean the thermocouple is not getting hot enough to move the needle to the green.
others with much more experience may correct this if I am on the wrong track but that is what I would be looking at first.
frank
aussie_paul said
03:00 PM Jan 22, 2015
Thanks Frank. That is what I thought BUT before removing the first screw I needed to check. Now I need someone to tell me how to go about sorting the thermocouple??
I had difficulty lighting it last night as the gas bottle was getting very close to empty, so switched to almost full bottle and it lit easily.
Aussie Paul.
oldtrack123 said
03:36 PM Jan 22, 2015
HI
I'll go along with Frank
You need to check the thermocouple position but ALSO the flame size
The thermocouple with a cable attached, is a small metal tube with a blunt [rounded] end that must have the tip in the flame at all times
Make sure you do not move the ignitor which has a sharpened point & also has a cable
But I would first check the flame size
The outer cone should just reach the lip of the boiler tube
It is possible you have a blockage in the gas system[loss of gas pressure at the burner]
aussie_paul said
09:29 PM Jan 22, 2015

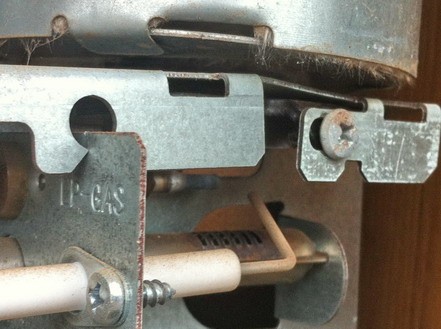

Ok fellas, I found the fridge vent and removed it to find everything I needed to check. A bit of a fiddle with the thermocouple then lit it and the tiny red needle went almost to the green. Here is a video of the flame. I must say the fridge works well on gas.
Aussie Paul - the video is a great way of demonstrating what you are talking about and shows the thermocouple position beautifully. If I were giving points I'd give you 9.5/10.
aussie_paul said
09:45 PM Jan 22, 2015
hako wrote:
Aussie Paul - the video is a great way of demonstrating what you are talking about and shows the thermocouple position beautifully. If I were giving points I'd give you 9.5/10.
Thanks Denis, as they say, "a pic/vid is worth a thousand words."
Aussie Paul.
aussie_paul said
10:31 PM Jan 22, 2015
How does the flame look to you experienced people?
Aussie Paul.
KFT said
11:09 PM Jan 22, 2015
Love the video of your flame
To me the flame size looks to be ok
I cannot tell if the thermocouple is in the right place though.
oldtrack123 said
11:52 PM Jan 22, 2015
Hi Paul The flame looks good
It may be decieving ,but the Ignitor tip [the right angled rod ] seems to be a long way above the burner
Does it light easily ? or with a woof?
-- Edited by oldtrack123 on Thursday 22nd of January 2015 11:56:23 PM
spida said
08:37 AM Jan 23, 2015
My red line never has gone into the green - sits on the border, but the fridge works just fine on gas.
elliemike said
11:11 AM Jan 23, 2015
spida wrote:
My red line never has gone into the green - sits on the border, but the fridge works just fine on gas.
Yes mine is just about on the line White/Green. Now and then it just goes over into the green.
You can test it by isolating the gas bottle (switch it off)Expose the gas burner as per the pictures.
Switch the fridge to "Gas"
Have someone watch the gas flame indicator on the fridge.
Using a "Gas Match" Gas lighter
Direct the flame onto the bulb end of Thermocouple above the burner.
You (the person watching the indicator) should see how far the indicator will move with direct flame on it.
It might not be worth fiddling and adjusting it, if the red indicator is at it's limit anyway.
That flame is really good.
Good Post as well.
-- Edited by elliemike on Friday 23rd of January 2015 11:14:16 AM
Radar said
11:55 AM Jan 23, 2015
Hi All.
This is a great way of learning.
It looks so simple now after viewing u tube, will be filing this info away for later use.
Thank you. Ralph.
aussie_paul said
12:27 PM Jan 23, 2015
Thanks everyone, don't you just love Cindy's forum, eh? Thanks Cindy.
Aussie Paul.
aussie_paul said
08:58 PM Jan 28, 2015
oldtrack123 wrote:
Hi Paul The flame looks good
It may be decieving ,but the Ignitor tip [the right angled rod ] seems to be a long way above the burner
Does it light easily ? or with a woof?
-- Edited by oldtrack123 on Thursday 22nd of January 2015 11:56:23 PM
Ralph, it does not light easily but have not hear a "woof" (technical work). I meant to ask earlier, does the igniter spark jump to the burner or the thermocouple? I have been going to get Eril to push the button so I could see, have not got there yet!!!
Aussie Paul.
oldtrack123 said
10:50 PM Jan 28, 2015
HI Paul
It should jump to the burner.
aussie_paul said
11:14 PM Jan 28, 2015
oldtrack123 wrote:
HI Paul It should jump to the burner.
That is what I thought so the gap may be too wide. The "get Eril to press the igniter button and me watch" scenario needs to occur!!
Thanks.
Aussie Paul.
aussie_paul said
09:04 PM Jan 29, 2015
Ok, did the "get Eril to press the igniter button and me watch" trick and the spark jumped to the thermocouple. I bent the igniter down and now the spark jumps to the burner. Almost dark so will make sure it can't move again in the morning.
