Thanks for those pics Jim. I have copied those for my future reference, hope you don't mind.
I'm sure that will help Paul too.
aussie_paul said
06:39 PM Sep 4, 2014
Thanks Jim. I tested it this arvo on the tug and I have 14 volts with engine running at pin 9. Engine not running and ignition switched on 13 volts. Fortunately not while on accessories. There is a gadget under the bonnet, that I thought, was to only connect when alternator was charging.
Somewhere during the last few days someone mentioned that their Jayco had it on, I think, pin 2. I can't seem to find the post in search function.
Aussie Paul.
ps, I found this on the net. I like yours better Jim.
-- Edited by aussie_paul on Thursday 4th of September 2014 06:41:49 PM
Cricky Paul, if you use pin 2 your fridge could be running in reverse mate.
Soooorry all, I'll go hide behind a rock now.
aussie_paul said
06:50 PM Sep 4, 2014
Dougwe wrote:
Cricky Paul, if you use pin 2 your fridge could be running in reverse mate.
Soooorry all, I'll go hide behind a rock now.
Yeah Doug, that is what I thought. Just as well I check everything these days instead of relying on my SUPER memory.
Aussie Paul.
-- Edited by aussie_paul on Thursday 4th of September 2014 06:50:51 PM
aussie_paul said
06:53 PM Sep 4, 2014
Dougwe wrote:
Cricky Paul, if you use pin 2 your fridge could be running in reverse mate.
Soooorry all, I'll go hide behind a rock now.
That would solve my heating then Doug.
Aussie Paul.
Cruising Cruze said
07:58 PM Sep 4, 2014
Paul
I would stick with the Anderson Plugs
Maybe a red one for the fridge and a grey to charge the Battery
Both done in 6BS wire
you wont be sorry that way
Cheers John
aussie_paul said
08:17 PM Sep 4, 2014
Cruising Cruze wrote:
Paul
I would stick with the Anderson Plugs Maybe a red one for the fridge and a grey to charge the Battery Both done in 6BS wire
you wont be sorry that way
Cheers John
I really have not thought about it too much yet. Sorting all the other things I needed to learn about van and tug. At least I can say I know a lot more than I did when we bought it at Christmas, AND most info came from you guys/gals.
Aussie Paul.
aussie_paul said
08:25 PM Sep 4, 2014
Are we saying that the fridge and the battery charge leads go to pin 9? Do I assume that our Jayco is wired as per the above diagrams?
Aussie Paul.
-- Edited by aussie_paul on Thursday 4th of September 2014 08:27:31 PM
aussie_paul said
10:36 PM Sep 4, 2014
Our Pajero is wired with the large pins down the bottom, is that normal? Funny having diagrams upside down!!!
Aussie Paul.
Cruising Cruze said
10:48 AM Sep 5, 2014
It seems to be upside down that way Paul
large pin on top normally
How big are the cables in your wiring loom for the fridge ?? ( the cable to the 12 pin plug )
if they are to small the fridge wont run on peak performance
I had mine running on the normal 7 pin cable ( done by Caravan place )
and that did not work , always went backwards when I did a run for 3 hrs
I'm just like the rest of us still learn every day mate, don't be ashamed to ask here
Cheers John
ken thomas said
12:57 PM Sep 5, 2014
Mine is the number 9 pin with the largest wire possible
Ken
normn said
01:46 PM Sep 5, 2014
aussie_paul wrote:
Are we saying that the fridge and the battery charge leads go to pin 9? Do I assume that our Jayco is wired as per the above diagrams?
Aussie Paul.
-- Edited by aussie_paul on Thursday 4th of September 2014 08:27:31 PM
Our Pajero is wired with the large pins down the bottom, is that normal? Funny having diagrams upside down!!!
Aussie Paul.
The orientation of the pins depends upon whether the socket is mounted on something or under something. Then again if the socket is mounted on a vertical panel the large pins will neither be on the top or the bottom.
Our Pajero is wired with the large pins down the bottom, is that normal? Funny having diagrams upside down!!!
Aussie Paul.
The orientation of the pins depends upon whether the socket is mounted on something or under something. Then again if the socket is mounted on a vertical panel the large pins will neither be on the top or the bottom.
I had a look while I was unhooking the chains and it could have easily been mounted to match the online schematics. It only matters when you are troubleshooting though. I find it harder these days to stand on my head and read the instructions!!!
Aussie Paul.
aussie_paul said
09:31 PM Sep 5, 2014
They have used good solid wire from the isolator switch to the rear 12 pin plug. The Jayco wiring from pin 9 (pink) is a little lighter. Jayco told me today that the wire from pin 9 goes to the Setec charger and the fridge. Gradually getting there with an understanding of how it all fits and works together.
After looking at Norm's Jayco schematic, I now need to see if I have power to pin 8 (orange) as that should go to the Setec charger.
Aussie Paul.
-- Edited by aussie_paul on Friday 5th of September 2014 09:37:53 PM
Paul, if you rewire the van and run the Setec to pin 8 then you may possibly get an extra 0.5 V charging voltage to the battery. This would entail an extra heavy cable to the sockets pin 8 from the starting battery. It is surprising how muck voltage drop you get in 12 V wiring.
aussie_paul said
10:47 PM Sep 16, 2014
Today I checked the van wiring at the plug. This is what I found.. I wonder which wires are used for the electric van brakes? Must be the blue and white.
well it is supposed to be the blue and the white is "earth"
blue can also be reversing lights.
pays to check with a test lamp
PeterD said
11:30 PM Sep 16, 2014
Paul, if you look up at the plug/socket diagrams up at the top of the thread you will see that the colour code is the same as the plug in your pictured. The brake wiring should be the blue on pin 5. the middle pins on both sides (3 & 10) are the earth ones.
The black on pin 2 could be a reverse signal/light wire or it could just vanish into an unterminated ending. In some vans pin 2 is thieved for the fridge 12 V feed.
-- Edited by PeterD on Tuesday 16th of September 2014 11:34:38 PM
To save me tracking wiring, does anyone know which pin in the 12 pin trailer plug runs the fridge when tug is running?
Aussie Paul.
Hope you get it sorted
Regards. Brian
-- Edited by patrolst on Thursday 4th of September 2014 06:15:46 PM
-- Edited by patrolst on Friday 5th of September 2014 08:22:08 AM
I'm sure that will help Paul too.
Thanks Jim. I tested it this arvo on the tug and I have 14 volts with engine running at pin 9. Engine not running and ignition switched on 13 volts. Fortunately not while on accessories. There is a gadget under the bonnet, that I thought, was to only connect when alternator was charging.
Somewhere during the last few days someone mentioned that their Jayco had it on, I think, pin 2. I can't seem to find the post in search function.
Aussie Paul.

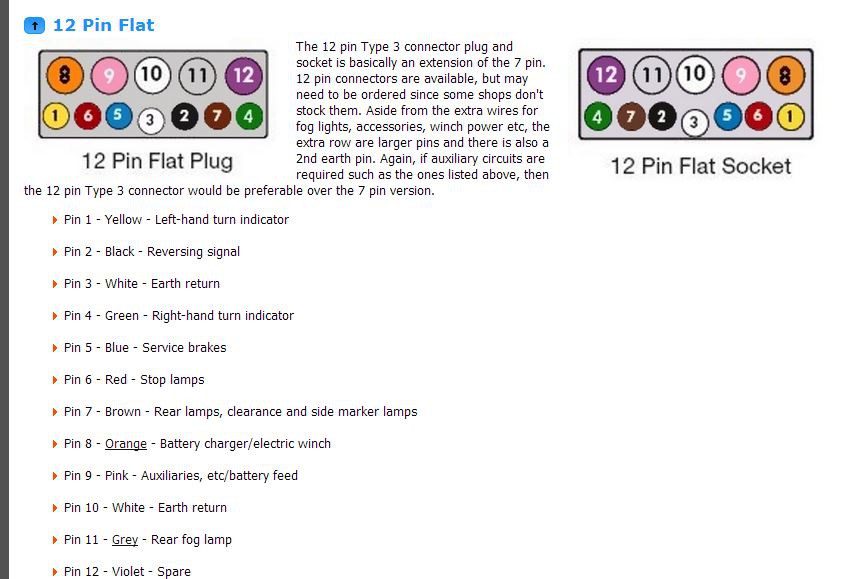

ps, I found this on the net. I like yours better Jim.
-- Edited by aussie_paul on Thursday 4th of September 2014 06:41:49 PM
Soooorry all, I'll go hide behind a rock now.
Yeah Doug, that is what I thought. Just as well I check everything these days instead of relying on my SUPER memory.
Aussie Paul.
-- Edited by aussie_paul on Thursday 4th of September 2014 06:50:51 PM
That would solve my heating then Doug.
Aussie Paul.
I would stick with the Anderson Plugs
Maybe a red one for the fridge and a grey to charge the Battery
Both done in 6BS wire
you wont be sorry that way
Cheers John
I really have not thought about it too much yet. Sorting all the other things I needed to learn about van and tug. At least I can say I know a lot more than I did when we bought it at Christmas, AND most info came from you guys/gals.

Aussie Paul.
Are we saying that the fridge and the battery charge leads go to pin 9? Do I assume that our Jayco is wired as per the above diagrams?
Aussie Paul.
-- Edited by aussie_paul on Thursday 4th of September 2014 08:27:31 PM
Our Pajero is wired with the large pins down the bottom, is that normal? Funny having diagrams upside down!!!
Aussie Paul.
large pin on top normally

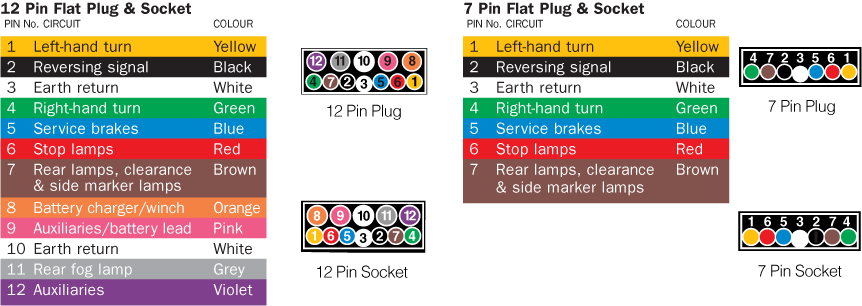

www.narva.com.au/products/browse/wiring-diagrams
How big are the cables in your wiring loom for the fridge ?? ( the cable to the 12 pin plug )
if they are to small the fridge wont run on peak performance
I had mine running on the normal 7 pin cable ( done by Caravan place )
and that did not work , always went backwards when I did a run for 3 hrs
I'm just like the rest of us still learn every day mate, don't be ashamed to ask here
Cheers John
Ken
See my diagram from the caravan manufacturer

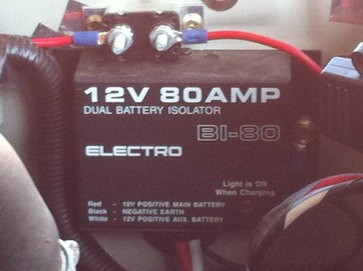

Ok, thanks Guys.. This is under the Pajero bonnet.
Aussie Paul.
The orientation of the pins depends upon whether the socket is mounted on something or under something. Then again if the socket is mounted on a vertical panel the large pins will neither be on the top or the bottom.
I had a look while I was unhooking the chains and it could have easily been mounted to match the online schematics. It only matters when you are troubleshooting though. I find it harder these days to stand on my head and read the instructions!!!


Aussie Paul.

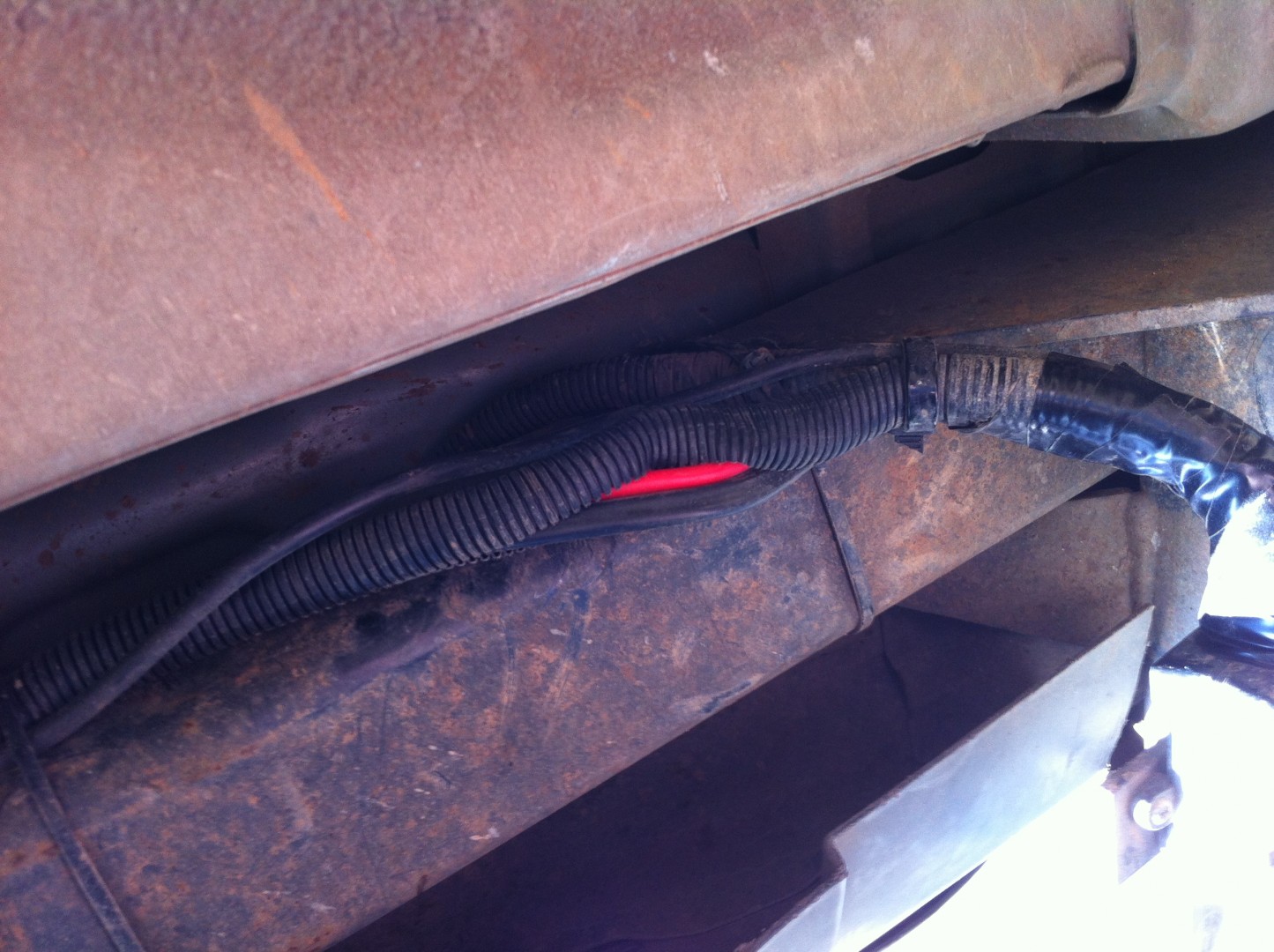

They have used good solid wire from the isolator switch to the rear 12 pin plug. The Jayco wiring from pin 9 (pink) is a little lighter. Jayco told me today that the wire from pin 9 goes to the Setec charger and the fridge. Gradually getting there with an understanding of how it all fits and works together.
After looking at Norm's Jayco schematic, I now need to see if I have power to pin 8 (orange) as that should go to the Setec charger.
Aussie Paul.
-- Edited by aussie_paul on Friday 5th of September 2014 09:37:53 PM

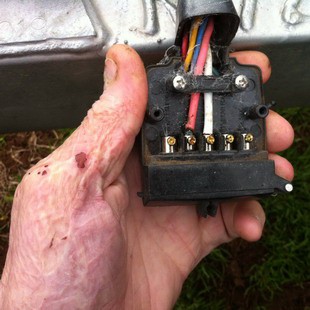

Today I checked the van wiring at the plug. This is what I found.. I wonder which wires are used for the electric van brakes? Must be the blue and white.
Aussie Paul.
Aussie Paul.


blue can also be reversing lights.
pays to check with a test lamp
Paul, if you look up at the plug/socket diagrams up at the top of the thread you will see that the colour code is the same as the plug in your pictured. The brake wiring should be the blue on pin 5. the middle pins on both sides (3 & 10) are the earth ones.
The black on pin 2 could be a reverse signal/light wire or it could just vanish into an unterminated ending. In some vans pin 2 is thieved for the fridge 12 V feed.
-- Edited by PeterD on Tuesday 16th of September 2014 11:34:38 PM
