I have a 12-pin flat plug on my vehicle for use with the caravan. I have bought a mac raclight so I can illuminate the numberplate when carrying my bike.

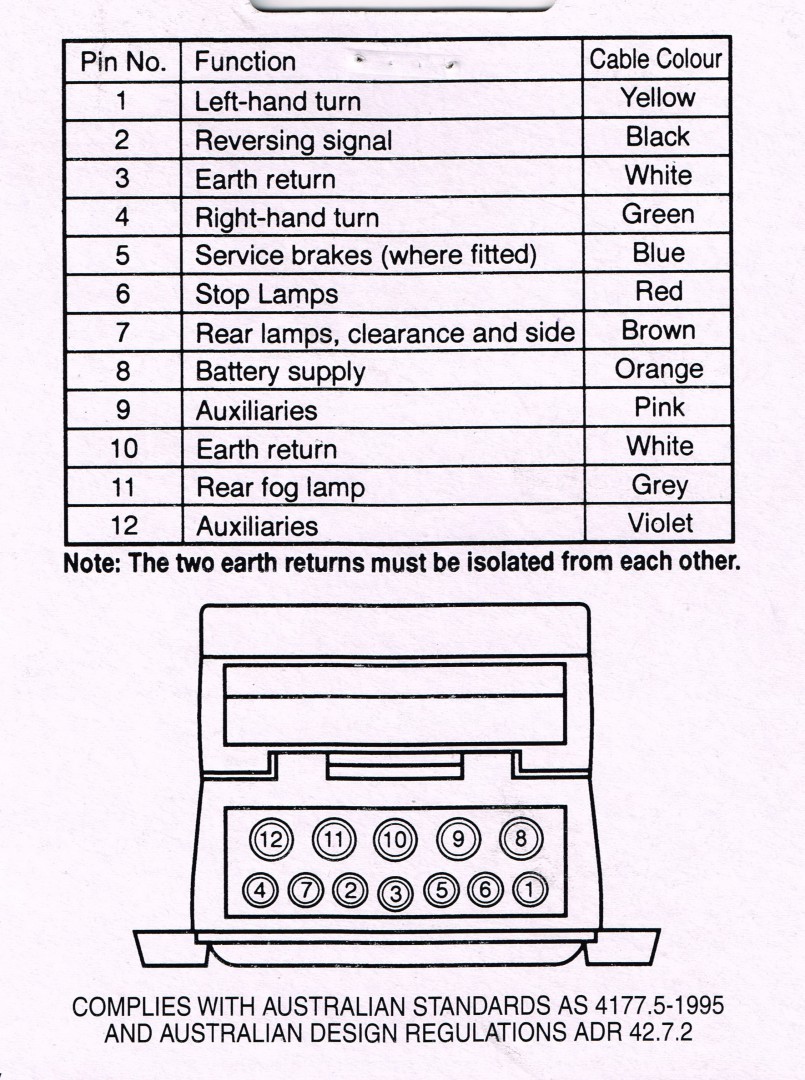

I need to wire the "mac raclight" to a 7-pin flat plug so I can use it with the fitting on my vehicle. Problem is that the mac raclight only has three wires which are red, yellow and white which do not coincide with the colours on the Repco plug -ie, the yellow on the Repco plug is for a turning light which I do not have on the mac raclight. Being a bit of a dunce I do not know what these colours represent and am not sure which hole to put them in on the new Repco 7pin plug. Can anybody please give me a bit of information. (The mac raclight only has a light to illuminate the numberplate and a stop-light).
KFT said
09:03 PM Mar 28, 2014
at a guess, I would say white is earth, red is stop, that leaves yellow for plate light.
at a guess, I would say white is earth, red is stop, that leaves yellow for plate light.
frank
Thanks Frank.
dorian said
12:40 AM Mar 29, 2014
S----- stop light -----E----- plate light -----P
Measure the resistances between each pair of wires (S & E, E & P, S & P). The pair with the largest resistance will be S & P. The remaining wire will then be Earth.
Now remove one of the bulbs and measure the resistances between S & E and E & P. This will identify each bulb.
If the lamps are LEDs rather than incandescents, then remove both lamps and measure the resistances between each of the lamp's terminals and each of the wires. The wire that is common to both lamps is the Earth.
-- Edited by dorian on Saturday 29th of March 2014 05:19:21 AM
Kooroorinya Kelpie said
04:33 AM Mar 29, 2014
Brown is tail/no plate light. Red stop/brake, white is earth.
dorian said
10:11 AM Mar 29, 2014
From the horse's mouth (info at macrac dot com dot au) ...
----------------------------------------------------------------
The white wire is earth, the red are the tail lights and the yellow is the
brake light. Please feel free the call the number below for further
assistants.
BTW, even though the response to my support question was commendably prompt, I don't know how I should feel about a company that spells its own address as "Evetron Hills" instead of "Everton Hills", nor am I too sure about how many "further assistants" they might have.
KFT said
10:19 AM Mar 29, 2014
I was close
had the earth right.
frank
dorian said
10:57 AM Mar 29, 2014
KFT wrote:
I was close had the earth right.
frank
Close enough isn't always good enough, especially in electrical situations.
I prefer to get my information from credible, authoritative sources. The Internet has too much noise and very little signal.
KFT said
11:09 AM Mar 29, 2014
G'day Dorian
you are quite correct, you did the research and produced the correct answer
I was guessing and I shouldn't have done that.
my apologies to the OP for my lax attitude.
frank
03_troopy said
01:03 PM Mar 30, 2014
Might have helped if they had used standard colours for their macrac light too. But then again, there is no law that says they should (except common sense).
