hi al need a bit of advice please how to remove the vent seal and replace ,it is the one on top of the tank , has a visible spring and have found replacement seal but not sure how it locks in to place , it turns maybe 1/4 turn but not too adventerous to pull or prise till i ask
with thanks grae and deb
-- Edited by grae and deb on Friday 3rd of January 2014 06:21:13 PM
Bunkerbob said
08:20 PM Jan 3, 2014
Grae & De, just below you on the same forum page that you used is a thread titled "How to Use A Thetford Toilet". Scroll down to about reply 6 or 7 and there is a link to a chap who describes how to car for and maintain Thetford Toilets. Really useful info to the point the seal may not need replacing, just servicing. Hope this helps.
Bob
Bunkerbob said
08:21 PM Jan 3, 2014
The first is a how to use a van toilet video from from a reputable victorian dealer:
The second is a series of three videos on thetford cassette maintenance, well worth viewing just for the understanding, this is a link to the first of the three:
I have just replaced the main hole seal on mine - and after unscrewing the surrounds and removing the old one, got the new seal out of the packet and found a whole set of instructions. Have you opened the packet yet? Luckily I had done the job right.
grae and deb said
05:09 PM Jan 4, 2014
thankyou very much to everyone
KevKim37 said
10:05 PM Jan 4, 2014
I have had our C200 vent out numerous times when cleaning and they can be tight but require approx 1/4 turn anti-clockwise and also a firm pulling up or slight levering as the "O" Ring seal can be fairly tight if not removed for a while. I also lubricate the "O"Ring seal with Olive Oil on reassembly. The Swivel Outlet is also removed the same way(albeit more like a 1/2 turn anti-clockwise) as it has similar locking tabs like the vent with a larger "O"Ring seal.
hi al need a bit of advice please how to remove the vent seal and replace ,it is the one on top of the tank , has a visible spring and have found replacement seal but not sure how it locks in to place , it turns maybe 1/4 turn but not too adventerous to pull or prise till i ask
with thanks grae and deb
-- Edited by grae and deb on Friday 3rd of January 2014 06:21:13 PM
Bob
www.youtube.com/watch
The second is a series of three videos on thetford cassette maintenance, well worth viewing just for the understanding, this is a link to the first of the three:
www.youtube.com/watch
Copied this so it might be easier.
Bob

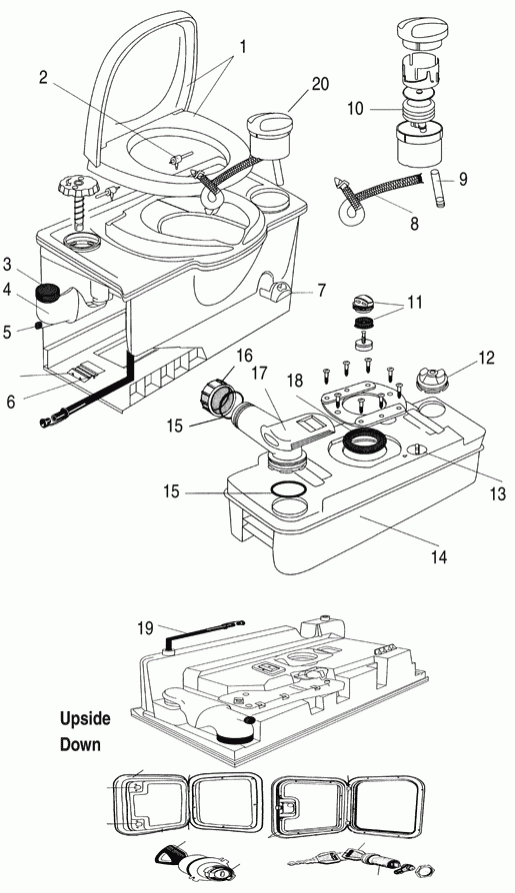

maybe this will help don't know if it is the right one
I have had our C200 vent out numerous times when cleaning and they can be tight but require approx 1/4 turn anti-clockwise and also a firm pulling up or slight levering as the "O" Ring seal can be fairly tight if not removed for a while. I also lubricate the "O"Ring seal with Olive Oil on reassembly. The Swivel Outlet is also removed the same way(albeit more like a 1/2 turn anti-clockwise) as it has similar locking tabs like the vent with a larger "O"Ring seal.
Cheers Kev.
