can someone help me understand how to calculate the atm of my jayco heratage 19.6 tare weight is 1850 gvm is 2032 thanks
ozjohn said
08:01 PM Oct 25, 2011
You can't calculate an ATM as it's not an actual weight, but a maximum weight specified by the van manufacturer.
It is stamped in the vans VIN Plate.
Cheers, ozjohn.
moosebarter said
10:34 AM Oct 26, 2011
thanks ozjohn i had trouble trying to get my head around it thanks for your time
ozjohn said
03:19 PM Oct 26, 2011
It's always pleasure to assist.
Note: the differnece between the TARE and the ATM is the 'Payload' or Personal Load Allowance and includes everything added onto, or into the van, including water and LPG after the van left the factory.
Cheers, ozjohn.
Cupie said
09:09 PM Nov 5, 2011
Hi ..
A bit late in responding, but when I have the neeed, I refer to this file.
Cupie, The sheet you have is a good reference, but is not absolutey correct in it's definitions.
GTM definition should include Maximum as specified by the trailer manufacturer and must not be exceeded. (similar to ATM).
Payload is not specifically specified by the vast majority of trailer manufacturers, but can be detiremened as follows: # The difference between the TARE and the ATM. # The difference between the TARE and the maximum permitted vehicle tow weight. # The difference between the TARE and the maximum permissable tow weight specified by the tow bar manufacturer Which ever is the lesser of the three.
Cheers, Ozjohn.
PS> Love ther Avatar, That's how I feel after Christmas Dinner. LOL.
-- Edited by ozjohn on Sunday 6th of November 2011 11:41:47 AM
-- Edited by ozjohn on Monday 7th of November 2011 09:44:42 AM
03_troopy said
12:59 PM Nov 6, 2011
Cupie wrote:
Hi ..
A bit late in responding, but when I have the neeed, I refer to this file.
Most of what you find on web pages are simplified or paraphrased versions and often leave vital bits out.
For example, here is what ist says regarding the commonly used terms:
AGGREGATE TRAILER MASS (ATM) - the total mass of the laden trailer when carrying the maximum load recommended by the 'Manufacturer'. This will include any mass imposed onto the drawing vehicle when the 'Combination Vehicle' is resting on a horizontal supporting plane.
GROSS TRAILER MASS (GTM) - the mass transmitted to the ground by the 'Axle' or 'Axles' of the trailer when coupled to a drawing vehicle and carrying its maximum load approximately uniformly distributed over the load bearing area, and at which compliance with the appropriate Australian Design Rules has been or can be established.
LOAD CAPACITY - the difference between 'GVM' of the vehicle and its 'Tare Mass'.
RATED TOWING CAPACITY - the lesser of either; - the rating given to the towing equipment fitted to the motor vehicle or, - the difference between 'Gross Combination Mass' and 'Gross Vehicle Mass'.
TARE MASS - mass of a vehicle other than a L-group vehicle ready for service, unoccupied and unladen, with all fluid reservoirs filled to nominal capacity except for fuel, which shall be 10 litres only, and with all standard equipment and any options fitted.
Plus another 30 pages of definitions.
-- Edited by PeterD on Tuesday 8th of November 2011 04:59:10 PM
ozjohn said
05:05 PM Nov 9, 2011
Hiya Peter, Your 2005 copy of VSB1 is out of date. The latest version is 2008 and reviewed in 2010. QUOTE: "LOAD CAPACITY - the difference between 'GVM' of the vehicle and its 'Tare Mass" In the currenty version of VSB, GVM has been replaced with ATM.
With the introduction of compulsory Vin Plates in 1989, GVM was replaced by ATM for trailers, whilst GVM was retained for the use of motor vehicles, although a few Coromal vans still had GVM stamped on the Vin plates in 1990.
If you download the curent version of VSB1 you'll also find quite a few other minor (but important) amendments as well as a few deletions.
Cheers, ozjohn.
PeterD said
12:08 AM Nov 11, 2011
Hiya John
I was not copying from VSB-1. I was copying from this document. When you go to the Third Edition Australian Design Rules the link is just above ADR 1 - Reversing Lamps. Its heading there is "Definitions and Vehicle Categories ."
ozjohn said
05:52 PM Nov 11, 2011
G'day Peter, The references you posted are in the main for Motor vehicles and GVM refers to such. GROSS VEHICLE MASS (GVM)- the maximum laden mass of a motor vehicle as specified by the Manufacturer.
When reffering to light trailers (Caqravans) VSB1 is the definative reference. As of 1989 GVM was replaced by ATM (Aggregate Trailer Mass).
Have a great wekend. OJ
-- Edited by ozjohn on Friday 11th of November 2011 05:53:50 PM
jimricho said
07:16 PM Nov 12, 2011
ozjohn wrote:
G'day Peter, The references you posted are in the main for Motor vehicles and GVM refers to such. GROSS VEHICLE MASS (GVM)- the maximum laden mass of a motor vehicle as specified by the Manufacturer.
When reffering to light trailers (Caqravans) VSB1 is the definative reference. As of 1989 GVM was replaced by ATM (Aggregate Trailer Mass).
Have a great wekend. OJ
-- Edited by ozjohn on Friday 11th of November 2011 05:53:50 PM
My rego certificate (NSW) for the Goldstream still uses the term "GVM"
can someone help me understand how to calculate the atm of my jayco heratage 19.6 tare weight is 1850 gvm is 2032 thanks
You can't calculate an ATM as it's not an actual weight, but a maximum weight specified by the van manufacturer.
It is stamped in the vans VIN Plate.
Cheers, ozjohn.
thanks ozjohn i had trouble trying to get my head around it thanks for your time
It's always pleasure to assist.
Note: the differnece between the TARE and the ATM is the 'Payload' or Personal Load Allowance and includes everything added onto, or into the van, including water and LPG after the van left the factory.
Cheers, ozjohn.
Hi ..
A bit late in responding, but when I have the neeed, I refer to this file.
Cupie,
The sheet you have is a good reference, but is not absolutey correct in it's definitions.
GTM definition should include Maximum as specified by the trailer manufacturer and must not be exceeded. (similar to ATM).
Payload is not specifically specified by the vast majority of trailer manufacturers, but can be detiremened as follows:
# The difference between the TARE and the ATM.
# The difference between the TARE and the maximum permitted vehicle tow weight.
# The difference between the TARE and the maximum permissable tow weight specified by the tow bar manufacturer
Which ever is the lesser of the three.
Cheers, Ozjohn.
PS> Love ther Avatar, That's how I feel after Christmas Dinner. LOL.
-- Edited by ozjohn on Sunday 6th of November 2011 11:41:47 AM
-- Edited by ozjohn on Monday 7th of November 2011 09:44:42 AM

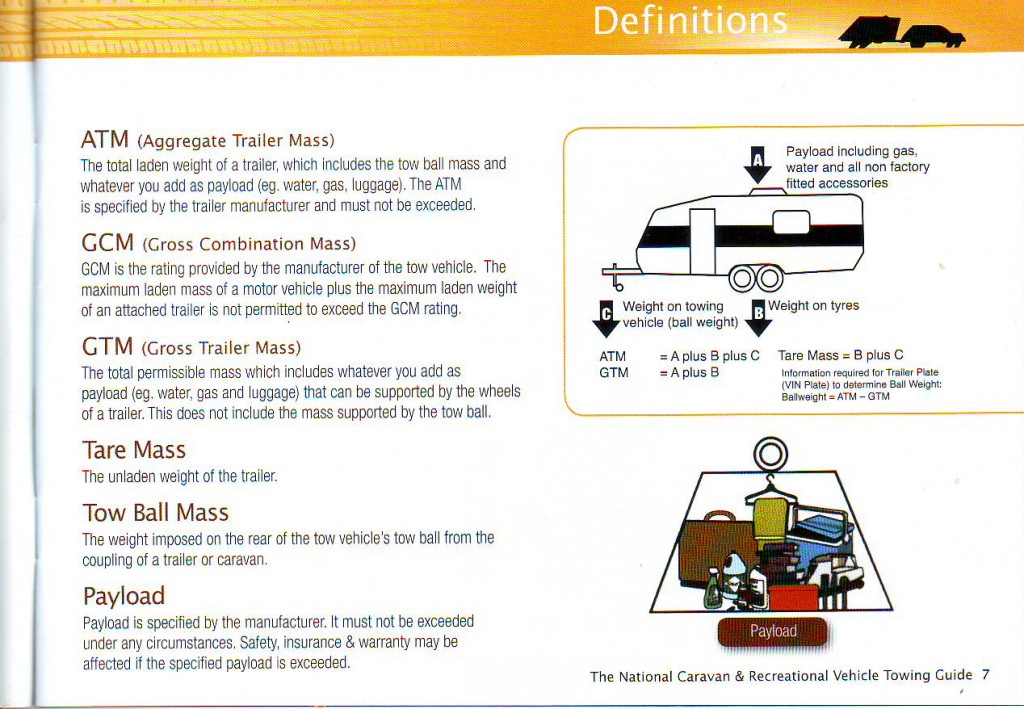

A link to the publication in PDF format
http://www.caravanqld.com.au/media/3831846/towing%20guide%2009%20web%201.pdf
-- Edited by 03_troopy on Sunday 6th of November 2011 01:55:22 PM
For the definitive definitions of things related to motor vehicles, download yourself a copy of Vehicle Standard (Australian Design Rule - Definitions and Vehicle Categories) 2005. You can download it in a PDF, DOC or ZIP file format.
Most of what you find on web pages are simplified or paraphrased versions and often leave vital bits out.
For example, here is what ist says regarding the commonly used terms:
AGGREGATE TRAILER MASS (ATM) - the total mass of the laden trailer when
carrying the maximum load recommended by the 'Manufacturer'. This will
include any mass imposed onto the drawing vehicle when the 'Combination
Vehicle' is resting on a horizontal supporting plane.
GROSS TRAILER MASS (GTM) - the mass transmitted to the ground by the 'Axle' or 'Axles' of the trailer when coupled to a drawing vehicle and carrying its maximum load approximately uniformly distributed over the load bearing area, and at which compliance with the appropriate Australian Design Rules has been or can be established.
LOAD CAPACITY - the difference between 'GVM' of the vehicle and its 'Tare Mass'.
RATED TOWING CAPACITY - the lesser of either;
- the rating given to the towing equipment fitted to the motor vehicle or,
- the difference between 'Gross Combination Mass' and 'Gross Vehicle Mass'.
TARE MASS - mass of a vehicle other than a L-group vehicle ready for service, unoccupied and unladen, with all fluid reservoirs filled to nominal capacity except for fuel, which shall be 10 litres only, and with all standard equipment and any options fitted.
Plus another 30 pages of definitions.
-- Edited by PeterD on Tuesday 8th of November 2011 04:59:10 PM
Hiya Peter,
Your 2005 copy of VSB1 is out of date.
The latest version is 2008 and reviewed in 2010.
QUOTE:
"LOAD CAPACITY - the difference between 'GVM' of the vehicle and its 'Tare Mass"
In the currenty version of VSB, GVM has been replaced with ATM.
With the introduction of compulsory Vin Plates in 1989, GVM was replaced by ATM for trailers, whilst GVM was retained for the use of motor vehicles, although a few Coromal vans still had GVM stamped on the Vin plates in 1990.
If you download the curent version of VSB1 you'll also find quite a few other minor (but important) amendments as well as a few deletions.
Cheers, ozjohn.
I was not copying from VSB-1. I was copying from this document. When you go to the Third Edition Australian Design Rules the link is just above ADR 1 - Reversing Lamps. Its heading there is "Definitions and Vehicle Categories ."
G'day Peter,
The references you posted are in the main for Motor vehicles and GVM refers to such.
GROSS VEHICLE MASS (GVM) - the maximum laden mass of a motor vehicle as specified by the Manufacturer.
When reffering to light trailers (Caqravans) VSB1 is the definative reference.
As of 1989 GVM was replaced by ATM (Aggregate Trailer Mass).
Have a great wekend.
OJ
-- Edited by ozjohn on Friday 11th of November 2011 05:53:50 PM
My rego certificate (NSW) for the Goldstream still uses the term "GVM"
